China Precision CNC Machining for High-Tech Equipment Manufacturers

Custom CNC machined aluminum and plastic parts for your automation equipment, robotics, and industrial applications — from prototype validation to low-volume production runs.

  • Tolerance down to ±0.01mm
  • Aluminum / Stainless / Nylon — multi-material
  • Prototype & low-MOQ support from 1 piece
  • Engineering review before production
QUOTEWithin 1 hour
LEAD TIME7–15 days
FORMATSSTEP/DXF/IGES
6061-T6 / 7075 Aluminum
CNC Aluminum Precision Parts
Tolerance ±0.01mm

— WHAT WE SOLVE —

Common Challenges in Preicision CNC Aluminum parts Manufacturing

For automation equipment and industrial assemblies, dimensional accuracy and assembly consistency matter more than appearance. We focus on the machining details that directly affect your installation, rigidity, and long-term performance.

01
🎯

Hole Position Accuracy

Even small hole deviations cause assembly misalignment in your automation systems and slow down line setup.

Hole position and flatness controlled for repeatable assembly.

02
💧

Anodizing Dimension Changes

Surface finishing affects thread fit and precision mating surfaces, especially on critical tolerance areas.

Machining compensation applied before anodizing to keep fits clean.

03

Prototype & Low-Volume Orders

Most large factories reject small prototype quantities with tight deadlines — leaving your project stuck.

Rapid CNC for prototype and low-volume runs without high MOQ.

04
🛡

Thin-Wall Deformation

Thin-wall aluminum structures can deform during machining or under vibration, causing fitment problems.

Toolpath strategy and structural support tuned for stability.

— What we done —

Precision CNC Aluminum and Plastic Machined Parts by Industry

Custom CNC machined aluminum parts for high-tech equipment manufacturers — from radar components and UAV structures to semiconductor fixtures and automation brackets.

Millimeter-Wave Radar Parts RADAR / RF 01

Millimeter-Wave Radar & RF Cavity Parts

Precision CNC machined aluminum components for millimeter-wave radar antennas, RF cavities, and waveguide assemblies where dimensional deviation directly affects signal performance.

Sub-0.01mm tolerance on critical RF surfaces

Aluminum 6061 / 7075 with anodizing or alochrome

For radar / telecom equipment manufacturers & research institutes

Quote this part →
Lightweight Aluminum Structure UAV UAV / AEROSPACE 02

Lightweight Aluminum Structural Parts

High strength-to-weight ratio aluminum structural components for UAV frames, aerospace assemblies, and airborne equipment where every gram and every micron counts.

7075-T6 aluminum for maximum strength-to-weight

Complex thin-wall structures with deformation control

For UAV manufacturers & aerospace OEMs

Quote this part →
Sensor Housing Heatsink ELECTRONICS / SENSORS 03

Sensor Housing, Heatsink & Hybrid Enclosures

CNC machined aluminum and plastic hybrid enclosures for sensors, heatsinks, and electronic assemblies where thermal management and dimensional fit must both be met.

Aluminum + engineering plastic hybrid structures

Heatsink fin machining with tight flatness control

For sensor OEMs & industrial electronics manufacturers

Quote this part →
Precision Jig Fixture SEMICONDUCTOR / SMT 04

Precision Jigs, Test Fixtures & Locating Tools

High-accuracy CNC machined jigs and fixtures for semiconductor production, SMT assembly lines, and electronic testing equipment where positioning repeatability is critical.

Hole position accuracy for repeatable component placement

Flatness & parallelism controlled across full fixture surface

For semiconductor fabs, electronics manufacturers & SMT equipment makers

Quote this part →
Automation Equipment Mounting Bracket INDUSTRIAL AUTOMATION 05

Automation Equipment Mounting Bracket

Used for structural positioning and component mounting in industrial automation systems where dimensional accuracy and assembly consistency are non-negotiable.

Material   Aluminum 6061-T6

Finish      Black Anodizing

Tolerance ±0.01mm

Application Industrial Automation

Quote this part →
Robotic Arm Support Bracket ROBOTICS 06

Robotic Arm Support Bracket

Precision machined support bracket designed for robotic arm assemblies and motion systems where rigidity, weight, and alignment all matter simultaneously.

High rigidity structure for vibration-resistant operation

Accurate hole positioning for repeatable assembly

Lightweight aluminum without compromising strength

Quote this part →

— WHERE WE APPLY —

Precision Machined Applications for High-Tech Equipment Manufacturers

From millimeter-wave radar to semiconductor fixtures and UAV structures — our engineering-driven CNC machining delivers the dimensional accuracy and assembly consistency your equipment demands.

01

Industrial Automation

Mounting brackets, camera holders, and structural frames for automation assembly lines where repeatability and positional accuracy define output quality.

Explore parts →
02

Robotics Systems

Robot arm joints, servo motor mounts, and structural brackets machined for rigidity and alignment under continuous load and vibration cycles.

Explore parts →
03

Semiconductor & SMT Equipment

Precision jigs, test fixtures, and locating tools for semiconductor fabs, SMT assembly lines, and electronic test equipment with micron-level positioning accuracy.

Explore parts →
04

Radar & RF Systems

Millimeter-wave antenna components, RF cavities, and waveguide assemblies machined to sub-0.01mm tolerances for radar, telecom, and research institutions.

Explore parts →
05

UAV & Aerospace

Lightweight 7075-T6 aluminum structural parts and housings for UAV frames and aerospace assemblies where strength-to-weight ratio is non-negotiable.

Explore parts →
06

Assembly Fixtures

Custom tooling and fixture plates for precision assembly lines, ensuring component repeatability and flatness control from prototype through batch production.

Explore parts →

> HOVER ANY APPLICATION TO EXPAND

ENGINEERING DETAIL

Engineering Challenges in Precision CNC Aluminum Machining

High-tech equipment manufacturers require more than standard CNC machining. Dimensional consistency, assembly alignment, and surface finish stability all directly affect your final equipment performance.

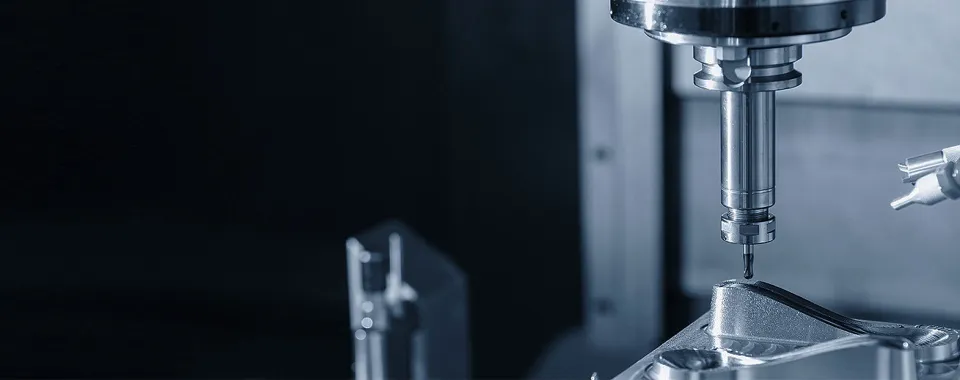

CMM Inspection CMM INSPECTION
CH–01 MOST CRITICAL

Hole Position Accuracy

For automation and robotics assemblies, even small hole deviations affect your installation alignment and repeatability. A 0.05mm offset on a single mounting hole can mean misaligned shafts, jammed slides, or costly rework on your assembly line.

HOW WE SOLVE IT

Positional tolerance controlled through precision CNC machining and CMM dimensional inspection on every batch. Critical hole patterns verified against drawing before shipment.


CH–02 OFTEN OVERLOOKED

Anodizing Dimensional Compensation

Surface treatment slightly affects your thread fit and precision mating surfaces. Most factories machine to drawing dimensions and ship — only to find threads bind or shaft fits go tight after anodizing. This is a process planning problem, not a machining one.

HOW WE SOLVE IT

Machining allowance applied before anodizing to keep threads clean and shaft fits within spec after finishing. We account for coating thickness at the drawing review stage.

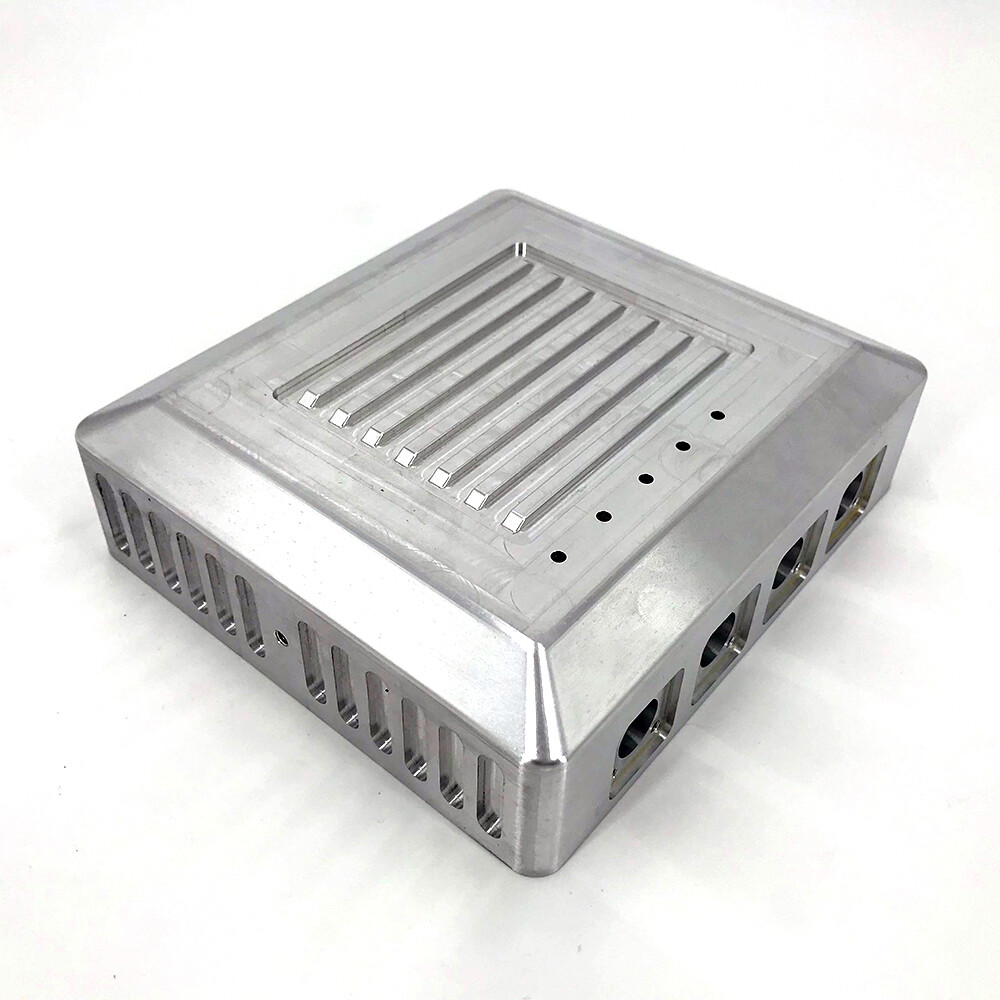

Surface Finish SURFACE FINISH

Toolpath Strategy TOOLPATH STRATEGY
CH–03 THIN-WALL SPECIFIC

Deformation & Flatness Control

Thin-wall aluminum structures in UAV frames, RF housings, and automation brackets can deform during machining or under vibration in service. Cutting force, residual stress, and clamping pressure all add up — and a 0.1mm bow ruins flatness on a mounting surface.

HOW WE SOLVE IT

Machining strategy and fixture support tuned per part to improve rigidity and flatness stability through the full cycle. Toolpath sequence planned to release stress progressively.


CH–04 SERVICE RELIABILITY

Thread Precision & Assembly Fit

Repeated installation in your equipment requires accurate threads and consistent assembly tolerance. A thread that grabs once but galls on the third re-install is a service-life problem, not a manufacturing one — and it costs your team field time.

HOW WE SOLVE IT

Thread gauges and inspection procedures applied per batch to keep installation reliable across your service life. Go/No-Go gauge results documented with each shipment.

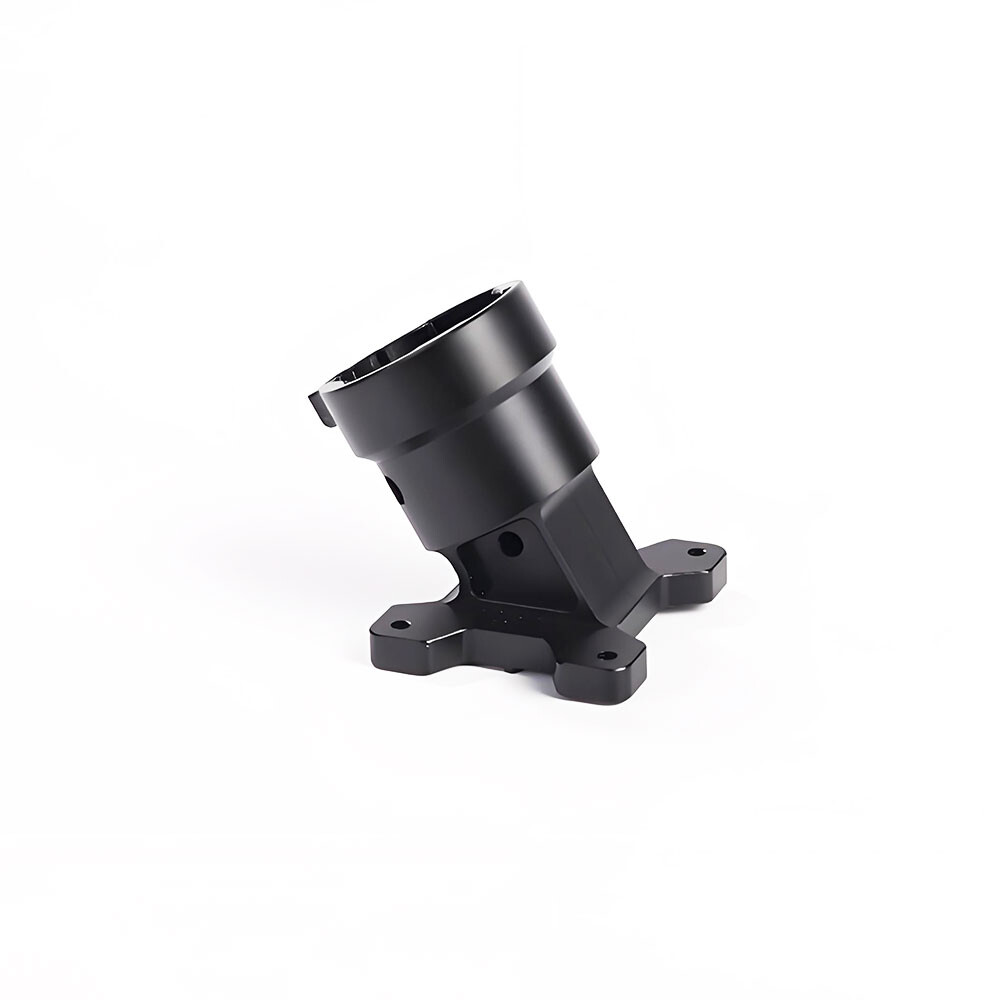

Thread Gauge THREAD GAUGE

Prototype Machining PROTOTYPE TO BATCH
CH–05 LOW-VOLUME SUPPORT

Prototype Lead Time & Small Batch Support

Most large factories reject small prototype quantities with tight deadlines — leaving your development schedule stuck. When your engineering team needs 3–10 pieces in 5 days to validate fit and function, standard factory MOQ and lead times become a blocker.

HOW WE SOLVE IT

Rapid CNC for prototype and low-volume runs from 1 piece. Typical prototype lead time 3–7 days. Same tolerance standards as batch production — no quality compromise for small orders.

PROCESS DETAIL

CNC Machining Capabilities

From prototype machining to low-volume production, our CNC process is designed for precision aluminum parts used in your high-tech equipment and automation systems.

PART 01 PROCESS CAPABILITIES

Core machining processes covering your precision parts needs

3 Axis CNC Milling
01

3 Axis CNC Milling

Standard precision parts, mounting brackets, fixture plates, and structural aluminum components with high dimensional consistency.

4 Axis CNC Machining
02

4 Axis CNC Machining

Improves machining efficiency for multi-side features, complex mounting structures, and rotational parts in one setup.

5 Axis CNC Machining
03

5 Axis CNC Machining

Complex geometries, angled surfaces, and high-precision RF cavities and aerospace structures in one setup.

Drilling and Thread Tapping
04

Drilling & Thread Tapping

Precision drilling and thread machining for reliable assembly and repeat installation performance. Go/No-Go gauge inspection per batch.

PART 02 DATASHEET

Typical Machining Specifications

Reference values for standard aluminum precision parts. Custom specs supported on request.

MATERIAL Aluminum 6061 / 7075 / 5052
TOLERANCE ±0.01 mm
MOQ 1 piece
LEAD TIME 3 – 7 days (prototype)
SURFACE FINISH Ra 1.6
ANODIZING Clear / Black / Custom
DRAWING FORMAT STEP / STP / IGS / PDF

Need a tighter tolerance, different alloy, or special finish? Send your drawing for engineering review.

↑ Request Custom Spec Quote

ENGINEERING NOTE

Machining Process Considerations

Fixture positioning, cutting parameters, and machining sequence are optimized based on your part structure, material grade, and dimensional requirements.

For thin-wall aluminum structures and precision mating surfaces, additional support setups and inspection procedures are used to improve flatness and assembly consistency.

VERIFIED BEFORE SHIPMENT

Quality Control & Dimensional Inspection

For precision CNC parts used in your automation and high-tech equipment, dimensional consistency directly affects assembly performance. Inspection procedures are integrated throughout machining and finishing to improve your repeatability and reduce assembly issues.

PART 01 INSPECTION LAB
CMM Coordinate Measuring CMM · COORDINATE MEASURING

Dimensional Inspection for Assembly Accuracy

Critical dimensions such as hole positions, flatness, mounting surfaces, and threaded features are inspected to improve your assembly consistency in automation and high-tech equipment applications.

Hole position & pitch tolerance check

Flatness verification on mounting surfaces

Thread fit verified with go / no-go gauges

Surface finish & appearance inspection

📄

Inspection reports can be provided based on your project requirements.

PART 02 4 INSPECTION FOCUS AREAS

Four checkpoints we run on every batch

Hole Position Verification 01

GEOMETRY

Hole Position Verification

Critical mounting hole locations are inspected to reduce assembly deviation and improve your installation repeatability.

Surface Finish Inspection 02

COSMETIC

Surface Finish Inspection

Surface quality, anodizing uniformity, and cosmetic defects are checked to reduce installation variation per batch before shipment.

Thread and Tapping Inspection 03

THREADING

Thread & Tapping Inspection

Go/No-Go gauging applied per batch to keep thread fit and installation reliability during repeated assembly cycles.

Flatness and Deformation Control 04

STABILITY

Flatness & Deformation Control

Flatness inspection improves structural stability for thin-wall aluminum parts and precision mounting surfaces before shipment.

HOW WE WORK WITH YOU

Prototype to Low-Volume Production Support

From early-stage prototypes to repeat production, we support your engineers and equipment manufacturers with flexible CNC machining solutions for precision aluminum and structural components.

PROCESS FLOW 4 STAGES · FROM DRAWING TO DELIVERY
Drawing Review
STEP
01
📄 ENGINEERING

Drawing Review

Engineering review based on your 2D drawings or 3D files before machining begins. Tolerance conflicts and DFM issues flagged upfront.

↙ 1 hour reply

Rapid Prototype Machining
STEP
02
PROTOTYPE

Rapid Prototype Machining

Fast CNC machining support for your prototype parts and functional testing components. MOQ from 1 piece with full tolerance control.

↙ 5-7 days

Dimensional Verification
STEP
03
🔍 INSPECTION

Dimensional Verification

CMM inspection and Go/No-Go gauging applied before your assembly and performance testing. Critical dimensions verified against drawing.

↙ Report on request

Low-Volume Production
STEP
04
🏭 PRODUCTION

Low-Volume Production

Flexible support for your small-batch production and repeated manufacturing projects. Same quality standards from prototype through full batch.

↙ No high MOQ

SUPPLY CHAIN PARTNER

Why engineers & equipment manufacturers work with us

From drawing review to final inspection, our process is built around the dimensional accuracy and assembly consistency that high-tech equipment manufacturers require from their CNC machining partner.


01 COMMUNICATION

Engineering-Focused Communication

Your drawings and machining requirements are reviewed before production to reduce assembly issues and machining risks. We flag dimensional conflicts and tolerance concerns before cutting starts.

Support is available for STEP files, tolerance discussion, DFM feedback, and prototype feasibility review — replied within 1 hour during business hours.

✓ STEP / DXF / IGES ✓ Tolerance Review ✓ Feasibility Check
Engineering Communication

Dimensional Consistency
02 QUALITY

Stable Dimensional Consistency

Critical dimensions — hole positions, flatness, thread fit, and mating surface tolerances — are inspected throughout machining and finishing, not only at final output.

CMM coordinate measuring and Go/No-Go gauge inspection applied per batch to keep your assembly repeatability consistent from prototype through full production.

✓ CMM Inspection ✓ ±0.01mm Tolerance ✓ Batch Reports

03 FLEXIBILITY

Prototype to Production — No MOQ Barrier

Most large factories reject small prototype quantities with tight deadlines. We support low-volume runs from 1 piece with the same tolerance standards as batch production — no quality compromise for small orders.

Typical prototype lead time is 3–7 days. Batch production 7–15 days. Your development schedule stays on track without waiting for factory minimums.

✓ MOQ from 1 pc ✓ 3–7 Day Prototype ✓ Same QC Standards
Prototype to Production

Multi-Industry Experience
04 EXPERIENCE

Built for High-Tech Industry Requirements

Our machining experience covers radar & RF components, UAV structural parts, semiconductor fixtures, robotics brackets, and automation assembly hardware — each with different tolerance and surface requirements.

We understand that engineers in these industries need a supplier who reads drawings carefully, not one who machines to the nearest standard dimension and ships.

✓ Radar / RF ✓ UAV / Aerospace ✓ Semiconductor / SMT

START YOUR PROJECT

Ready to work with a CNC partner who reads drawings carefully?

Send your file. Get pricing, lead time & engineering feedback.

Whether you're at prototype stage or scaling to repeat production, share your STEP, DXF, or IGES file and our engineer will reply within 1 hour.

1
MIN ORDER QTY
Low MOQ Support
Prototype quantities starting from a single piece
7
DAYS LEAD TIME
Fast Turnaround
Typical prototype lead time so you stay on schedule
<1h
DRAWING REPLY
Engineering Communication
Drawing review and feasibility discussion before quoting
MOST ASKED
100%
PROCESS REPEATABILITY
Stable Repeat Production
Consistent machining with locked toolpaths for repeat orders

COMMON QUESTIONS

Frequently Asked Engineering Questions

Answers to the most common questions engineers ask before placing a CNC order. Don’t see yours? Send your drawing — we’ll reply within 1 hour.

Aluminum 6061-T6 is our most common choice — excellent machinability, good strength, and anodizes well. For higher strength applications, 7075-T6 is preferred. We advise the best grade based on your load requirements and surface treatment needs.
Our standard tolerance is ±0.05mm for general features. For critical dimensions such as hole positions, bearing fits, and mating surfaces, we can hold ±0.01mm. Tighter tolerances are available with CMM verification.
Yes — anodizing adds 0.005–0.025mm per surface. For threaded holes and precision fits, we apply machining compensation before anodizing to ensure final dimensions stay within tolerance after finishing.
We use precision CNC machining centers with positional accuracy of ±0.005mm, and every batch includes CMM dimensional inspection for critical hole positions, flatness, and mating surface dimensions.
Yes. Our MOQ is 1 piece. We support engineering prototype validation, design iteration batches, and low-volume production runs without high MOQ requirements or tooling fees.
We accept STEP (.stp/.step), IGES (.igs), DXF, DWG, and PDF. STEP files are preferred for 3D CNC machining. Please include a 2D drawing in PDF or DXF format for tolerance and threading details.
Prototype and small batches (1–10 pcs): 3–7 business days. Production runs (50–500 pcs): 7–15 days depending on complexity, material, and surface finish. Rush orders available on request.
We offer: As-Machined, Bead Blasting, Anodizing (Type II clear/black/color, Type III hardcoat), Passivation for stainless steel, Electroless Nickel Plating, and Powder Coating.
We use optimized toolpaths with reduced cutting forces, custom soft fixtures to distribute clamping pressure, and multi-pass high-speed milling to minimize residual stress and deformation.
Yes. We use oversized taps (H2/H3 class) to compensate for anodizing thickness, ensuring threads remain functional after finishing. Critical threads can be masked during anodizing on request.
Yes. Every shipment includes a Dimensional Inspection Report covering major tolerances, thread checks, and cosmetic status. Full CMM reports and material certificates are available on request.
Our minimum order quantity is 1 piece with no minimum order value. Ideal for engineering teams validating designs, R&D labs, and custom machinery integrators who need small precision batches.

— START YOUR PROJECT

Ready to work with a CNC partner who reads drawings carefully?

Send your file. Get pricing, lead time & engineering feedback within 1 hour.

Whether you're at prototype stage or scaling to repeat production, share your STEP, DXF, or IGES file and our engineer will reply within 1 hour.

Common Project Concerns: Hole position accuracy Anodizing compensation Tight assembly tolerance Small batch support

🔒 Your drawings are kept confidential. NDA available on request.

REQUEST A QUOTE 24H REPLY

Tell us about your project

Send 2D/3D drawings — we'll review and reply with pricing & lead time.

🔒 Confidential. NDA available on request.
